LSR Cables

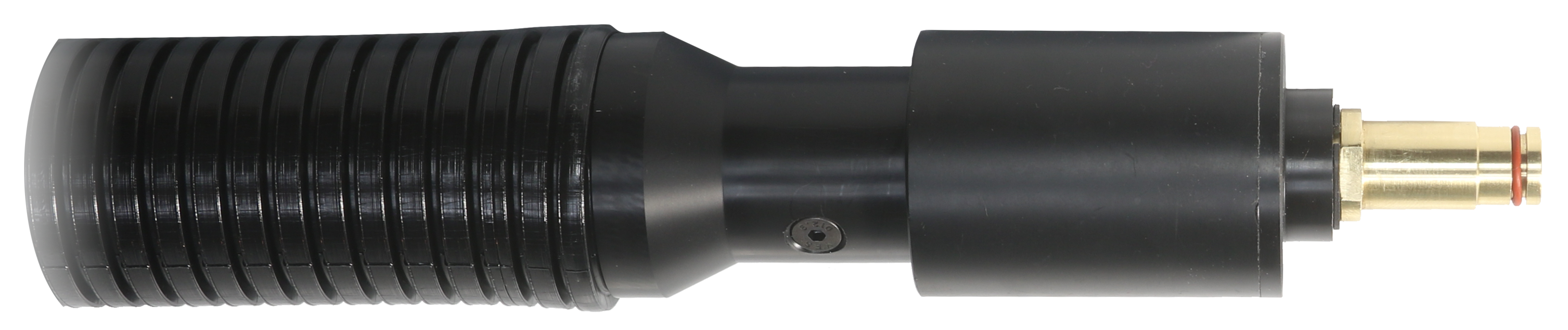

KR5-ez1
Compatible Replacement for Tregaskiss® LSR Unicables
FOR HOLLOW WRIST ROBOTS
EZ TURN TECHNOLOGY
- Same tech used in KOOL RUN KR502HW
- Rated for 350 Amp @ 100%
- Fully protected and insulated
- Smooth Rotation
STRESS-FREE
- Increase overall life of cable over
- conventional robotic power cables
LIMITLESS ROTATION
- Start and End in any position
- No restriction on torch body and neck rotation
- Spin 360° endlessly and never worry about
cable torsion
INCREASED PRODUCTIVITY
- Longer life over OEM
- Less downtime = Decreased operating costs
Robot Brand | Robot Model | Tregaskiss® Part # | CM Industries Part # |
ABB® | IRB1600ID, IRB1520ID | 58SA024 | KR58SA024 |
IRB2600ID - 15/1.85 | 58SA028 | KR58SA028 | |
IRB2600ID - 8/2.00 | 58SA029 | KR58SA029 | |
IRB1660ID | 58SA030 | KR58SA030 | |
Fanuc® | 100iC, 100iC/12 | 58SF005 | KR58SF005 |
100iC/6L, 100iC/7L | 58SF007 | KR58SF007 | |
120iC | 58SF006 | KR58SF006 | |
120iC/10L, 120iC/12L | 58SF008 | KR58SF008 | |
100iC/8L | 58SF010 | KR58SF010 | |
100iD | 58SF011 | KR58SF011 | |
100iD/8L | 58SF012 | KR58SF012 | |
100iD/10L | 58SF014 | KR58SF014 | |
120iD | 58SF015 | KR58SF015 | |
120iD/12L | 58SF016 | KR58SF016 | |
KUKA® | KR 5 HW | 58SK023 | KR58SK023 |
KR 16 L8 HW | 58SK027 | KR58SK027 | |
KR 16 HW | 58SK030 | KR58SK030 | |
KR 6/8 R1820 HW | 58SK031 | KR58SK031 | |
KR 8 R1420 / R1620 HW | 58SK032 | KR58SK032 | |
KR 8 R2100 HW | 58SK033 | KR58SK033 | |
Motoman® | MA1440, AR1440, MH12 | 58CM035* | KR58CM035 |
MA2010, AR2010 | 58CM038* | KR58CM038 | |
OTC® | AX-MV4 AP | 58CD003* | KR58SD003 |
AX-MV4l AP | 58CD022* | KR58SD022 | |
FD-B4 | 58CD036* | KR58SD036 | |
FD-B4L | 58CD037* | KR58SD037 | |
FD-B6 | 58CD038* | KR58SD038 | |
FD-B6L | 58CD050* | KR58SD050 |
* All Clutch Mount applications not available at this time
Many more options available. Contact us for more information.
