Water Coolers
CM Industries offers versatile compact stainless steel welding water coolers to suit different needs. Our high-efficiency, high-circulation stainless steel MIG and TIG welding coolers feature 2.5 or 3-gallon reservoir capacities, 115V or 230V motor voltages, and 100 psi pump capacity.
MODEL | PART # | GALLONS | LITERS | VOLTS | AMPS | HZ | BTU/HOURS |
WC2500 | 680-25-102 | 2 | 7.6 | 115 | 5.0 | 50/60 | 12,000 |
680-25-100 | 2 | 7.6 | 230 | 2.5 | 50/60 | 12,000 | |
WC3500 | 690-25-100 | 3 | 11.4 | 115 | 5.0 | 50/60 | 15,000 |
690-25-102 | 3 | 11.4 | 230 | 2.5 | 50/60 | 15,000 |
WC2500 – 2 GL
STAINLESS STEEL WATER COOLER
Specifications
Dimensions:
18″ Long x 9 1/4″ Wide x 12 3/8″ High
(45.8 cm x 23.5 cm x 31.4 cm)
Pump Capacity:
100 psi max. 1.5 gpm (5.68 ipm) @ 50 psi.
1.8 gpm (6.81 lpm) @ 60 psi.
Heat Exchanger:
High Efficiency, Copper Core, Rustproof, 12,000 BTU
Water Connections:
5/8”-18 UNC Left-Handed Inert Gas Fittings
Net Weight:
40 lbs. (18.2 kg)
WC3500 – 3 GL
STAINLESS STEEL WATER COOLER
Specifications
Dimensions:
23″ Long x 11″ Wide x 14 3/4″ High
(58.4 cm x 27.9 cm x 37.5 cm)
Pump Capacity:
100 psi max. 1.5 gpm (5.68 ipm) @ 50 psi.
1.8 gpm (6.81 lpm) @ 60 psi.
Heat Exchanger:
High Efficiency, Copper Core, Rustproof, 15,000 BTU
Water Connections:
5/8”-18 UNC Left-Handed Inert Gas Fittings
Net Weight:
43 lbs. (19.5 kg)

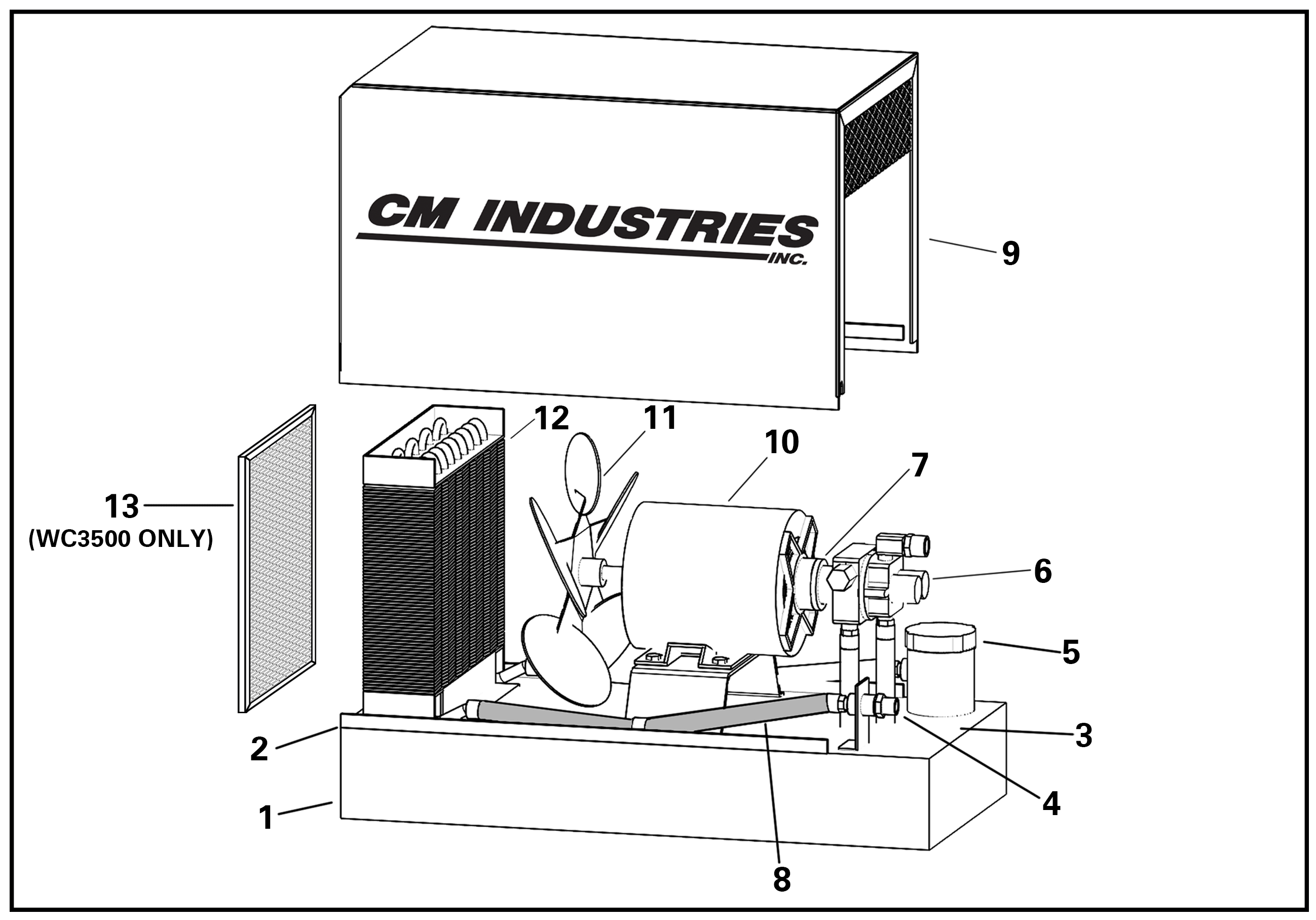

WC2500 | ||
# | PART # | DESCRIPTION |
1 | 680-30-020 | Tank |
2 | 680-30-021 | Tank Gasket |
3 | 680-30-022 | Tank Cover Plate |
4 | 680-30-023 | Inert Gas Adapter |
5 | 680-30-024 | Sight Glass Assembly |
6 | 680-30-067 | Pump, Rotary Vane |
6a | 680-30-069 | Pump Screen |
7 | 680-30-068 | Clamp, Pump to Motor |
8 | 680-30-025 | Rubber Hose |
9 | 680-35-026 | Hood |
10 | 680-30-061 | Motor 115/230V 50/60Hz |
11 | 680-30-027 | Fan, 8" |
12 | 680-30-028 | Radiator |
WC3500 | ||
# | PART # | DESCRIPTION |
1 | 680-30-020 | Tank |
2 | 680-30-021 | Tank Gasket |
3 | 680-30-022 | Tank Cover Plate |
4 | 680-30-023 | Inert Gas Adapter |
5 | 680-30-024 | Sight Glass Assembly |
6 | 680-30-067 | Pump, Rotary Vane |
6a | 680-30-069 | Pump Screen |
7 | 680-30-068 | Clamp, Pump to Motor |
8 | 680-30-025 | Rubber Hose |
9 | 680-35-026 | Hood |
10 | 680-30-061 | Motor 115/230V 50/60Hz |
11 | 680-30-027 | Fan, 8" |
12 | 680-30-028 | Radiator |
13 | 690-25-102 | Radiator Screen |
